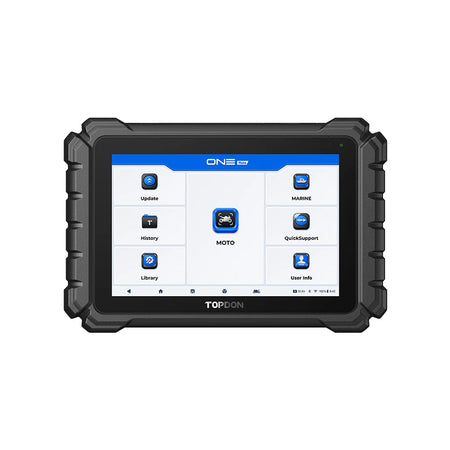

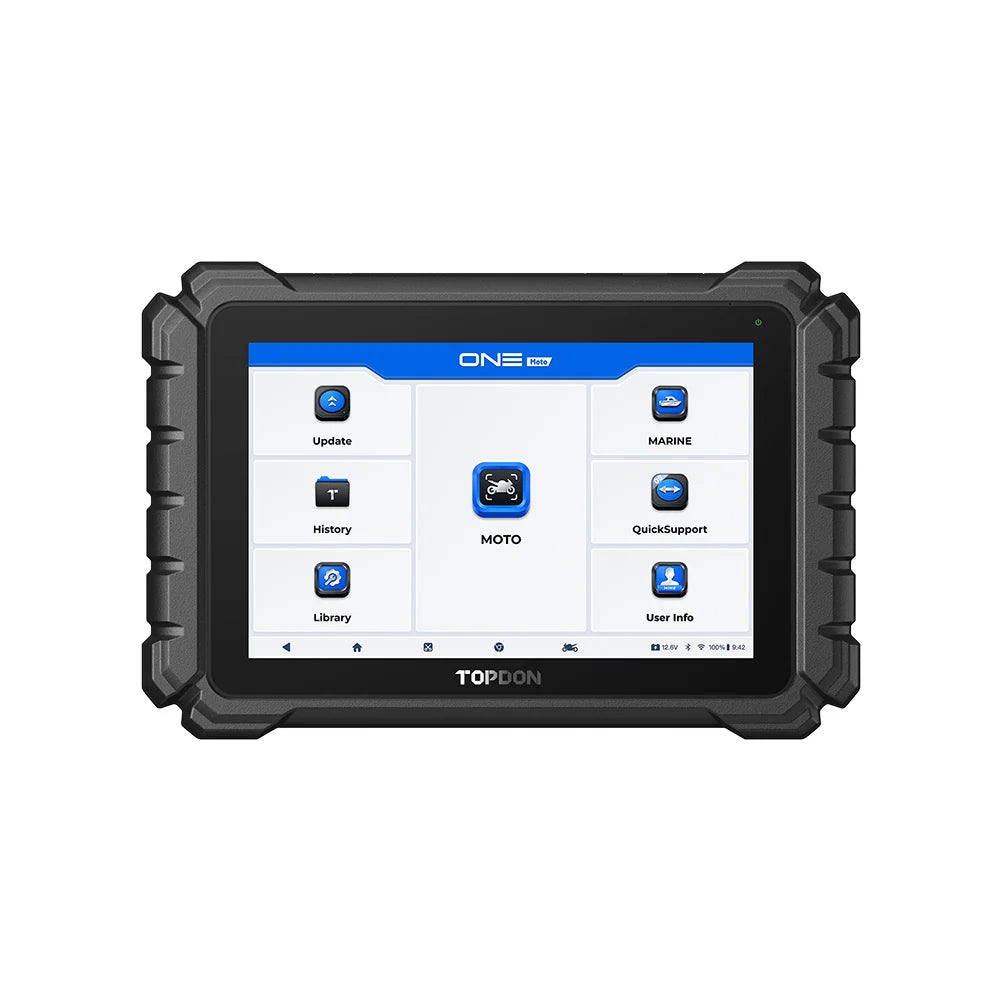

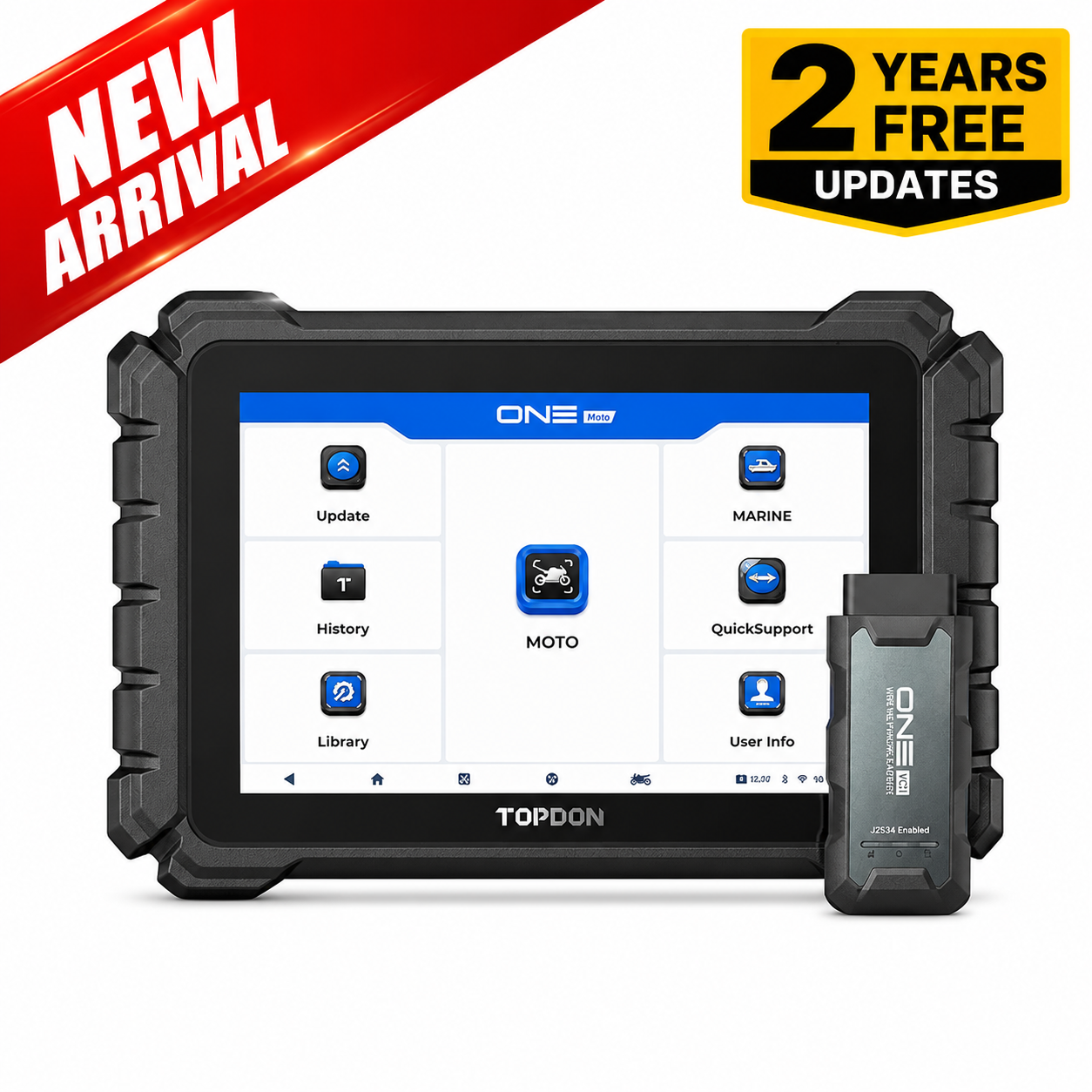

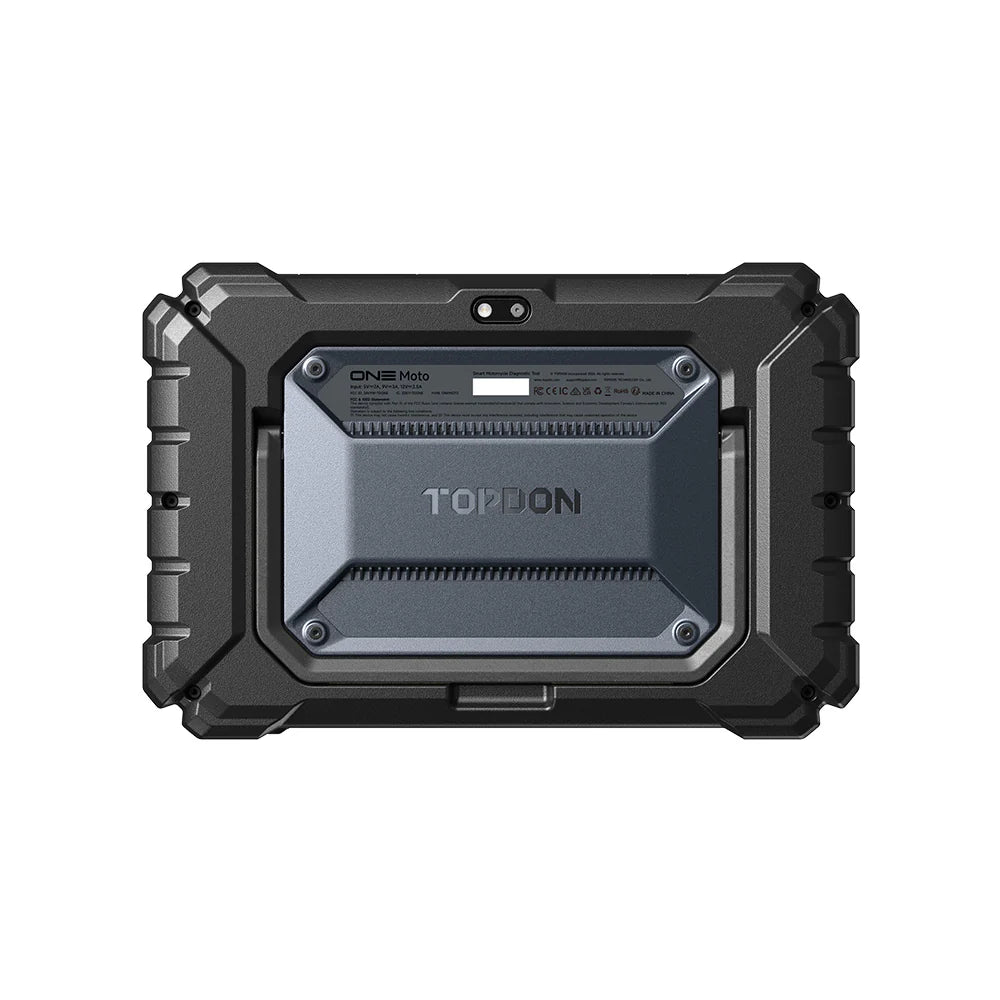

TOPDON ONE Moto Motorcycle, ATV & Marine Diagnostic Scan Tool

The TOPDON ONE Moto is a professional diagnostic scan tool designed for motorcycles, ATVs and marine applications. Featuring full-system diagnostics for 100+ motorcycle and powersports brands, marine diagnostic support, bi-directional controls and advanced service functions, it gives workshops comprehensive diagnostic capability in one rugged 10.1-inch tablet.

Key Features

Full-System Diagnostics for 100+ Brands

Diagnose engine, ABS, SRS, transmission, body, immobilizer and other available electronic systems across more than 100 supported motorcycle and ATV brands. ONE Moto also provides marine diagnostic coverage for nine major manufacturers, including Honda, Yamaha, Kawasaki and BRP.

Advanced ECU Functions

Supports advanced ECU functions for selected manufacturers, including ECU matching, software updates, module configuration and other programming functions where supported.

Bi-Directional Active Tests

Command and test vehicle components directly from the scan tool, including:

• Fuel pumps
• ABS valves
• Cooling fans
• Fuel injectors
• Relays
• Other supported actuators

Active testing helps technicians quickly determine whether a component or control circuit is operating correctly.

Service & Maintenance Functions

Perform a wide range of common workshop procedures, including:

• Oil resets
• TPMS registration
• Air/Fuel adjustments
• VIN writing
• Cruise control realignment
• Odometer functions
• Key and immobilizer functions
• Vehicle customization and adaptations

Available functions vary by vehicle make, model and year.

Key & Immobilizer Functions

Supports key replacement, remote registration, PIN code resets, immobilizer functions and other anti-theft procedures on compatible vehicles.

Live Data & Graphing

View up to 12 live data streams simultaneously and graph up to four parameters for easier comparison. Recording and playback functions help diagnose intermittent faults and confirm repairs.

Built-In DLC Location Guide

Select the vehicle model to view the diagnostic connector location, helping technicians quickly find difficult-to-locate motorcycle and marine diagnostic ports.

Extensive Adapter Kit

Includes 36 diagnostic connectors for broad motorcycle, ATV and marine coverage, reducing the need to purchase additional adapters.

ONE Moto Specifications

• Processor: 8-Core 2.0 GHz
• RAM: 4 GB
• Storage: 128 GB
• Display: 10.1-inch LCD, 1280 × 800
• Operating System: Android 12
• Battery: 10,000 mAh
• Camera: 16 MP autofocus
• Bluetooth: Bluetooth 5.0
• Wi-Fi: 2.4 GHz & 5 GHz
• Charging: PD Fast Charging
• USB: USB-A and USB-C
• Operating Temperature: -10°C to 50°C
• Dimensions: 311 × 207 × 39 mm
• Weight: 1.574 kg
• Languages: 45 supported languages

VCI Specifications

• Bluetooth: Bluetooth 5.0
• Wireless Range: Up to 10 metres
• Wi-Fi: 2.4 GHz, 802.11 b/g/n
• Operating Temperature: -10°C to 50°C
• Dimensions: 114.8 × 51 × 29 mm
• Weight: 96 g

What's Included

• TOPDON ONE Moto diagnostic tablet
• ONE VCI
• 36-piece diagnostic connector kit
• Power adapter
• USB-C to USB-C cable
• USB-A to USB-C cable
• Quick user guide
• 2 carrying cases

The TOPDON ONE Moto is an ideal solution for motorcycle workshops, powersports specialists and marine technicians looking for professional full-system diagnostics, active testing and advanced service capabilities from one comprehensive platform.
