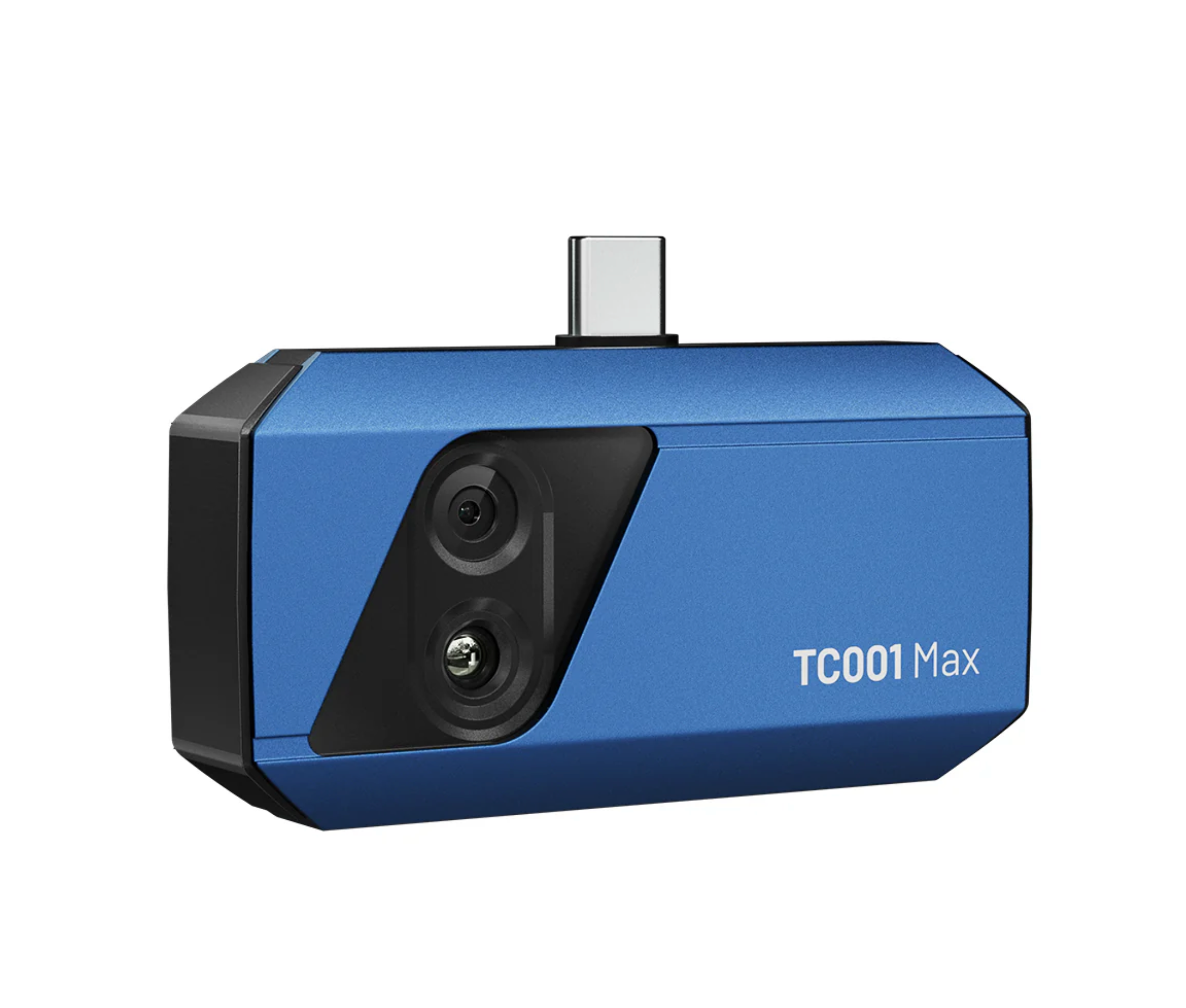

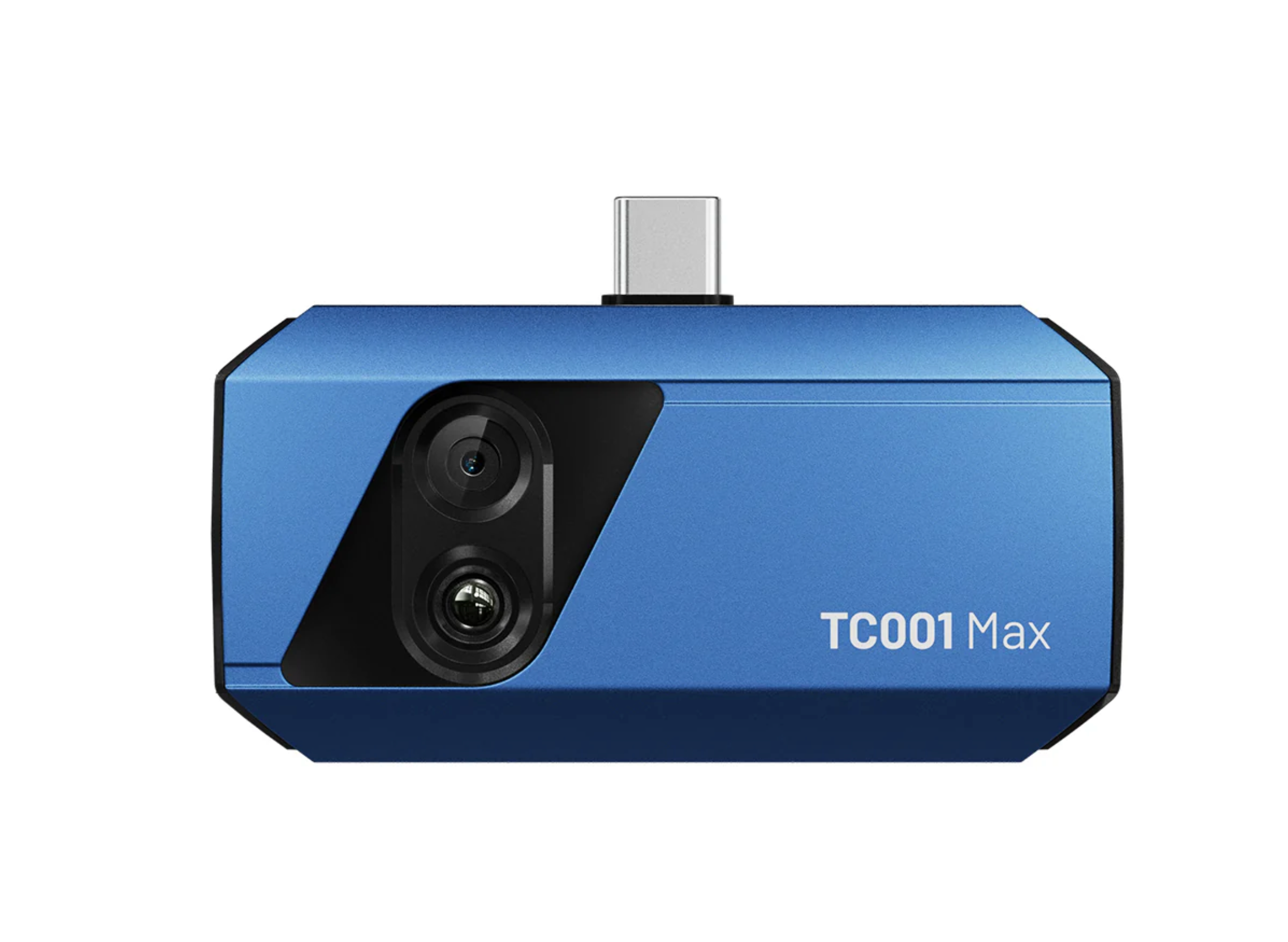

TOPDON TC001 MAX Dual-Lens Thermal Camera
Couldn't load pickup availability
SHARE THIS
12 months intrest free online & up to 36 months instore.
Product Overview
The TOPDON TC001 MAX is a professional dual-lens thermal imaging camera that transforms your USB-C smartphone or tablet into a powerful thermal inspection tool. Combining a 256×192 infrared sensor with a visible-light camera, the TC001 MAX delivers enhanced image clarity, accurate temperature measurement, and detailed thermal analysis for automotive, electrical, HVAC, building inspection, and maintenance applications. It supports real-time thermal imaging, photo and video capture, temperature monitoring, and AI-assisted diagnostics through the TOPDON app.
Key Features
Dual-Lens Thermal Imaging
- Combines infrared and visible-light cameras for improved target recognition.
- Enhanced image fusion provides greater detail and easier fault identification.
- Ideal for electrical, mechanical, and automotive diagnostics.
High-Resolution Thermal Sensor
- 256 × 192 infrared resolution.
- 512 × 384 super-resolution image enhancement.
- Captures detailed thermal images with exceptional clarity.
Wide Temperature Measurement Range
- Measures temperatures from -20°C to 550°C (-4°F to 1022°F).
- Suitable for everything from refrigeration systems to high-temperature electrical components.
Professional Thermal Performance
- ≤40mK NETD thermal sensitivity detects subtle temperature differences.
- 25Hz refresh rate provides smooth, real-time imaging.
- Accurate temperature measurement for professional inspections.
USB-C Smartphone Compatibility
- Compatible with USB-C Android devices, iPhones, and iPads.
- Compact plug-and-play design with no internal battery required.
- Powered directly from your mobile device.
TOPDON Thermal Imaging App
- Capture thermal photos and videos.
- Generate temperature reports.
- Monitor temperature changes in real time.
- Multiple colour palettes and image enhancement modes.
- AI-assisted fault detection with TopFix integration.
Applications
- Automotive diagnostics
- EV battery inspection
- HVAC troubleshooting
- Electrical fault detection
- Water leak detection
- Building and insulation inspections
- Preventative maintenance
- Mechanical equipment monitoring
- Home energy audits
Technical Specifications
| Specification | Value |
|---|---|
| Thermal Resolution | 256 × 192 Pixels |
| Super Resolution | 512 × 384 Pixels |
| Spectral Range | 8–14μm |
| Thermal Sensitivity (NETD) | ≤40mK |
| Refresh Rate | 25Hz |
| Temperature Range | -20°C to 550°C |
| Accuracy | ±2°C or ±2% |
| Interface | USB-C |
| Power Supply | Powered by Mobile Device |
| Image Capture | Yes |
| Video Recording | Yes |
| Colour Palettes | Multiple |
| Compatibility | USB-C Android, iPhone & iPad |
| Thermal Analysis | Real-Time Monitoring & Reporting |
Package Contents
- TOPDON TC001 MAX Thermal Camera
- USB-C Connection Adapter
- Protective Storage Case
- Cleaning Cloth
- Quick Start Guide
