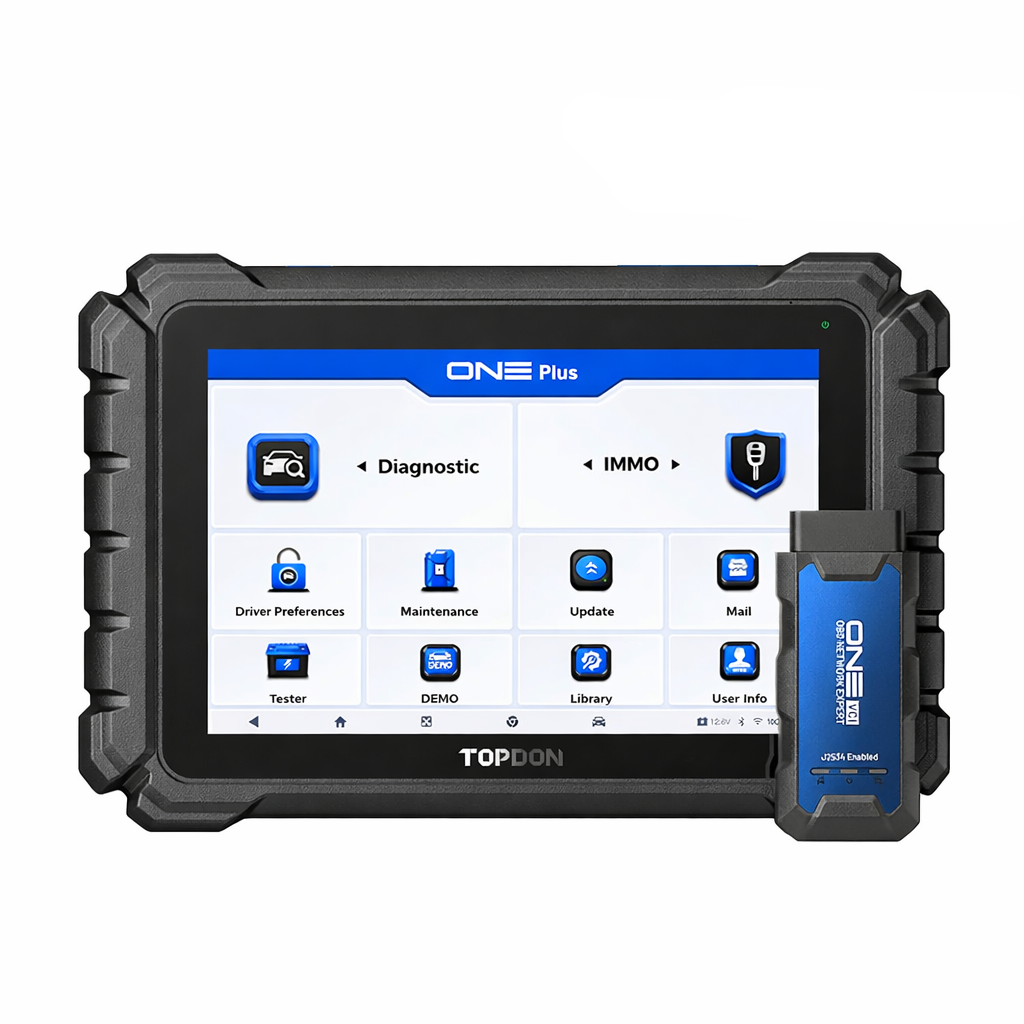

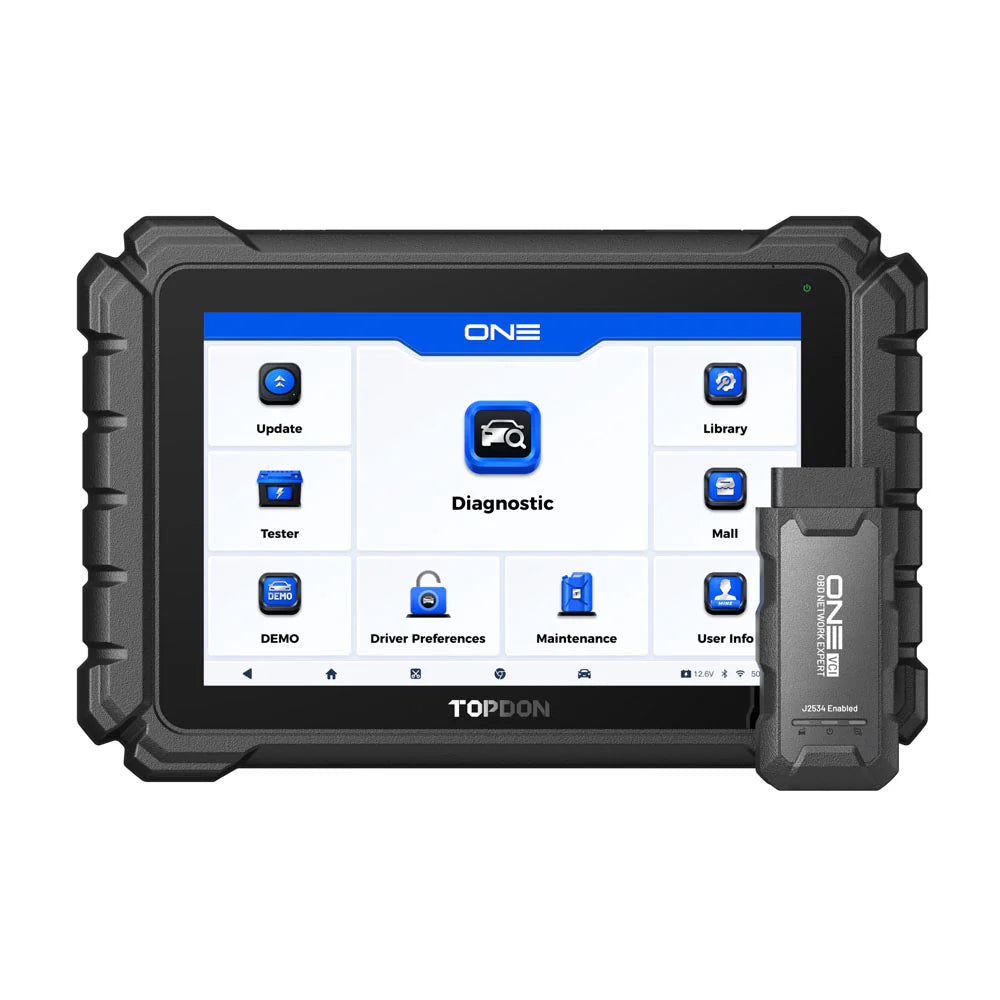

TOPDON ONE Plus Professional Diagnostic Scan Tool

TOPDON ONE Plus Professional Diagnostic Scan Tool

The TOPDON ONE Plus is a flagship professional diagnostic scan tool built for workshops, technicians, and diagnostic specialists who need advanced vehicle coverage, fast fault finding, ECU coding, programming support, and modern secure gateway access.

Designed for busy repair shops, the ONE Plus delivers full-system diagnostics, bidirectional control, more than 50 service functions, OE topology mapping, TopFix AI repair guidance, IMMO functions, CAN-FD, DoIP, WiFi VCI communication, and J2534 pass-thru capability.

Key Features

• Professional full-system vehicle diagnostics
• Bidirectional active tests and component control
• 50+ maintenance and service reset functions
• Advanced ECU coding for supported brands
• ECU programming support for BMW and VAG systems
• OE topology mapping with colour-coded fault display
• TopFix AI repair guidance and diagnostic support
• J2534 pass-thru support for compatible OEM software
• CAN-FD and DoIP protocol support
• Secure gateway support including FCA, Renault, Nissan and VAG SFD
• Advanced IMMO functions including key adding and key programming support
• WiFi VCI communication for faster workshop use
• Live data display with up to 12 parameters

Advanced ECU Coding and Programming

The TOPDON ONE Plus helps workshops handle more advanced jobs in-house. It supports ECU coding for supported vehicle brands, allowing technicians to match components, activate or deactivate functions, and customise supported vehicle settings.

ECU programming support is available for selected BMW and VAG systems, including ECM, SRS, ABS and TCM functions. Programming and coding coverage can vary by vehicle make, model, year and system.

Faster Fault Finding with Topology Mapping

OE topology mapping gives technicians a clear overview of the vehicle network. Faults can be identified faster with module status, DTC information and system communication displayed in a visual layout.

TopFix AI Diagnostic Support

TopFix AI helps speed up troubleshooting by providing repair guidance, possible causes, fixes and technical support information based on diagnostic fault codes and vehicle data.

Modern Vehicle Support

The ONE Plus is designed for newer vehicles with support for CAN-FD, DoIP and secure gateway access. Supported gateways include FCA SGW, Renault, Nissan and VAG SFD. Some secure gateway functions may require OEM credentials or authorised access.

Specifications

• Processor: 8-Core 2.0GHz
• Memory: 4GB RAM
• Storage: 128GB ROM
• Display: 10.1-inch LCD, 1280 x 800 resolution
• Battery: 10000mAh
• Operating System: Android 12 closed system
• Camera: 16MP autofocus
• Bluetooth: 5.0
• WiFi: 2.4GHz and 5GHz
• Charging: USB-C PD fast charging
• Operating Temperature: -10°C to 50°C
• Product Size: 311 x 207 x 39mm
• Net Weight: 1574g

VCI Specifications

• Bluetooth: 5.0
• WiFi: 2.4GHz AP mode
• WiFi Speed: Up to 300Mbps
• Product Size: 114.8 x 51 x 29mm
• Net Weight: 96g

Package Includes

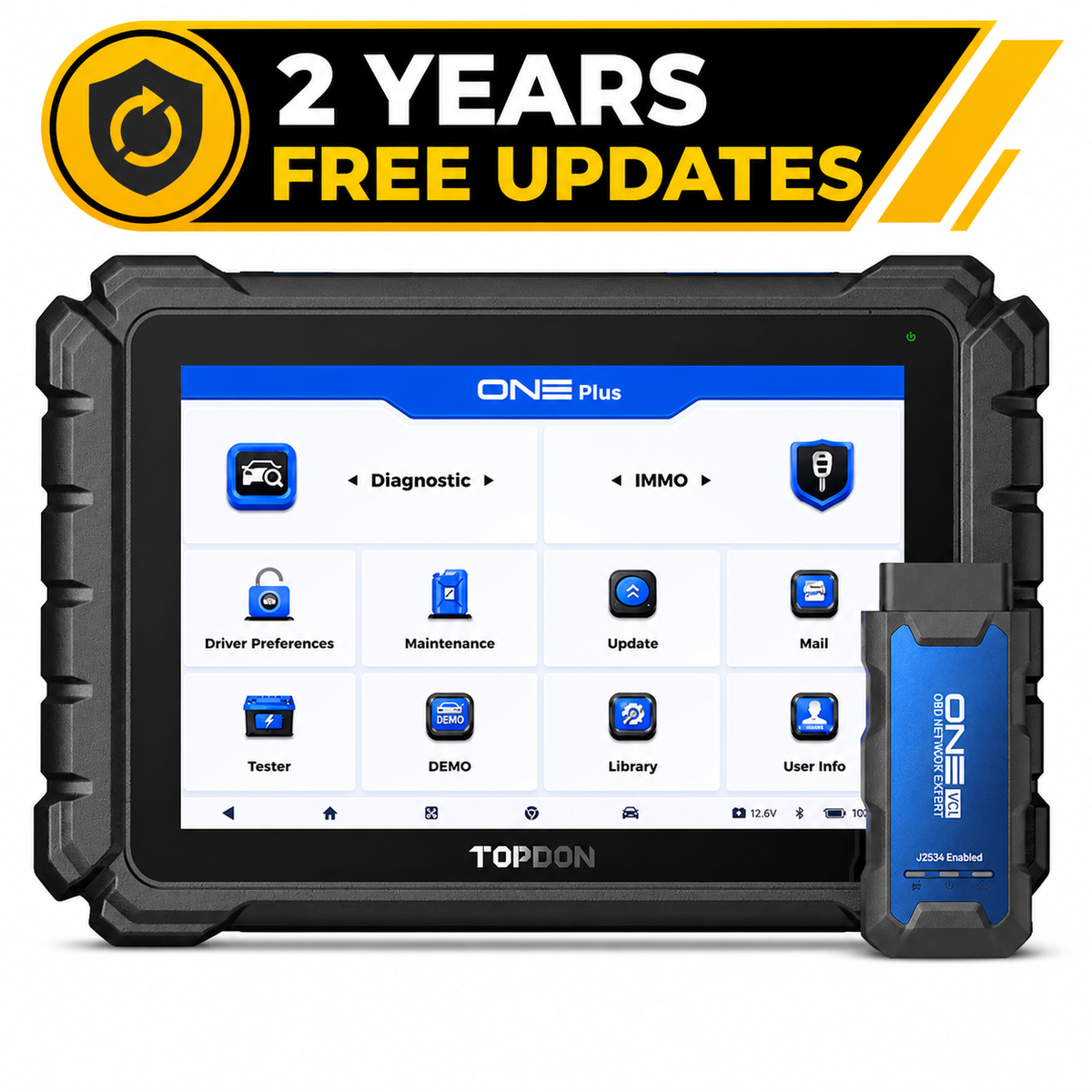

• TOPDON ONE Plus tablet
• ONE VCI
• Charger
• Diagnostic extension cable
• USB-C to USB-C cable
• USB-A to USB-C cable
• Quick user guide
• Carrying case
• Packaging box
• Bonus TopScan Master
• Bonus BTMobile ProS battery tester

Best Suited For

The TOPDON ONE Plus is ideal for professional workshops, diagnostic specialists, auto electricians, mobile mechanics and technicians wanting a high-performance scan tool with advanced diagnostics, programming support and future-ready vehicle communication protocols.
