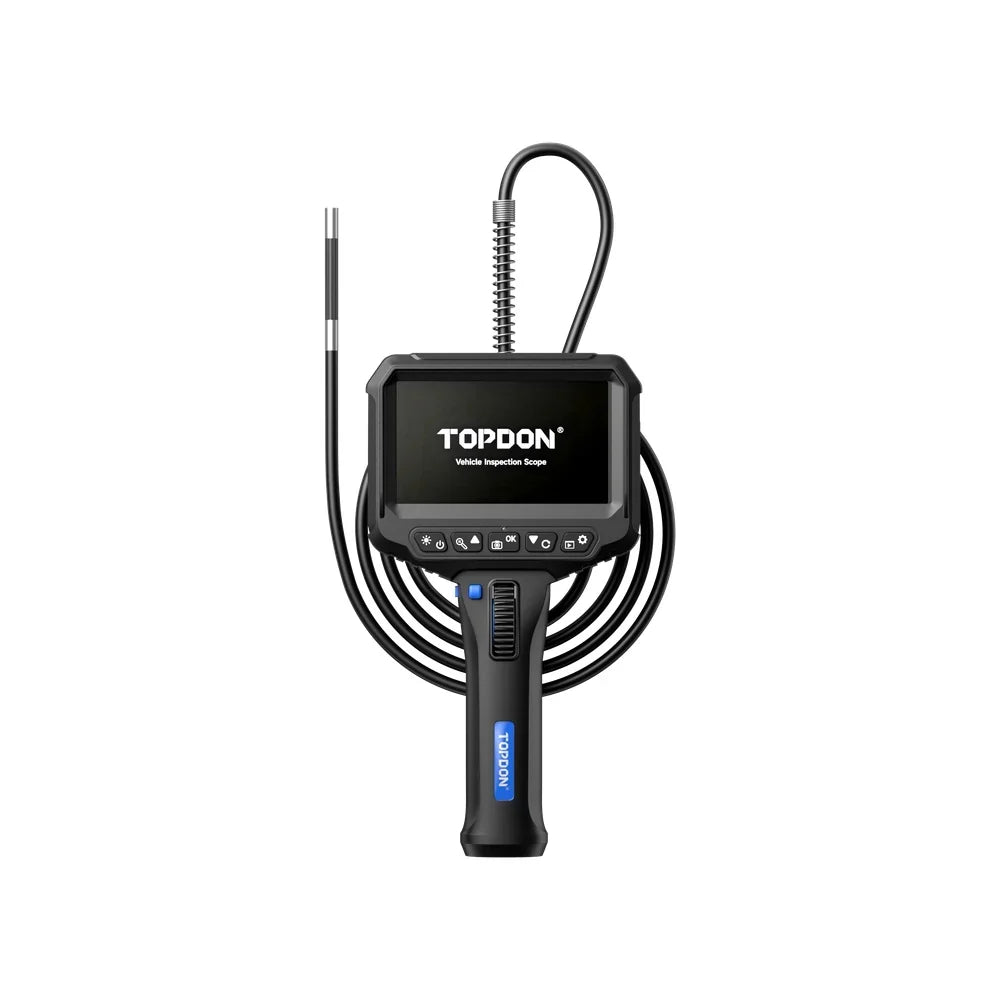

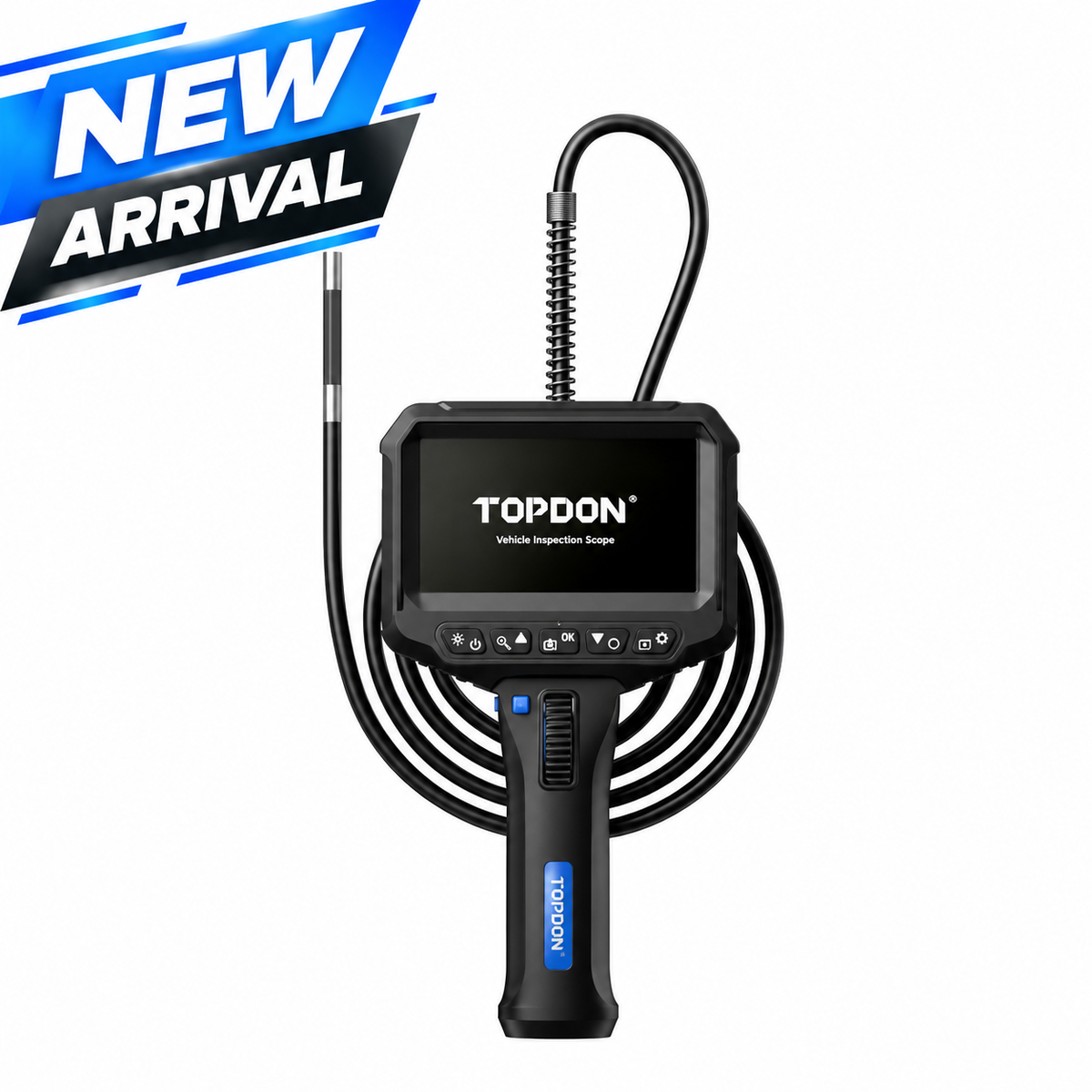

TOPDON VIS002 Articulating Inspection Camera Borescope

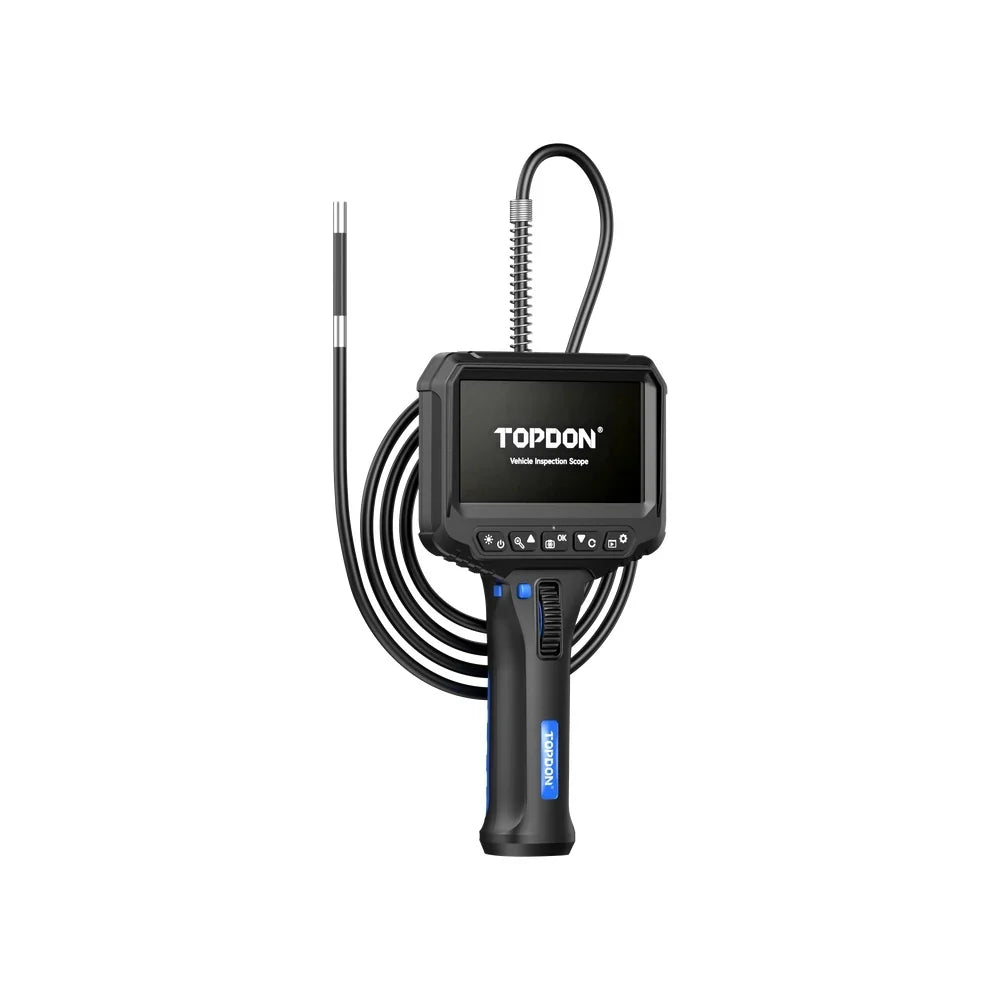

The TOPDON VIS002 is a professional inspection camera designed to help automotive technicians inspect difficult-to-access components without unnecessary disassembly. Its ultra-slim 5.5mm probe, 210° two-way articulation and built-in 4.3-inch IPS display make it ideal for engine, cylinder, intake, wiring and other confined-space inspections.

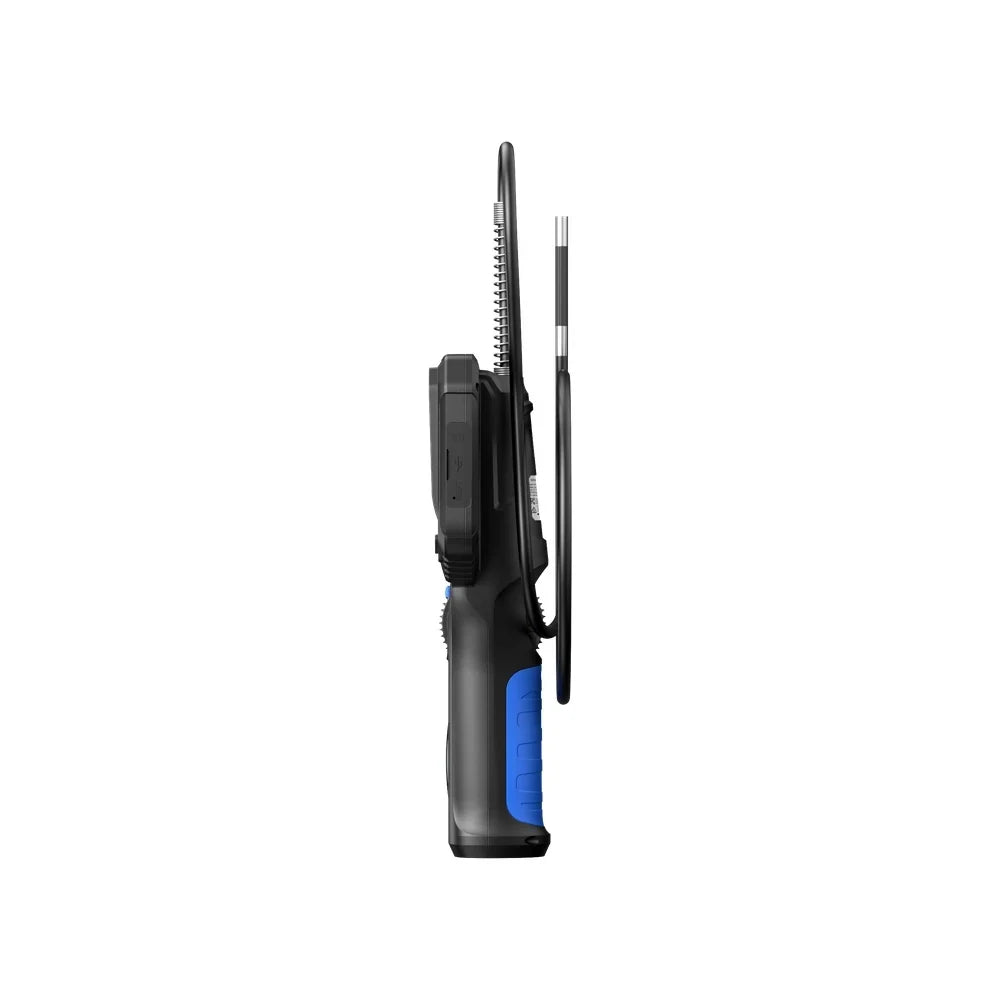

Ultra-Slim 5.5mm Articulating Probe

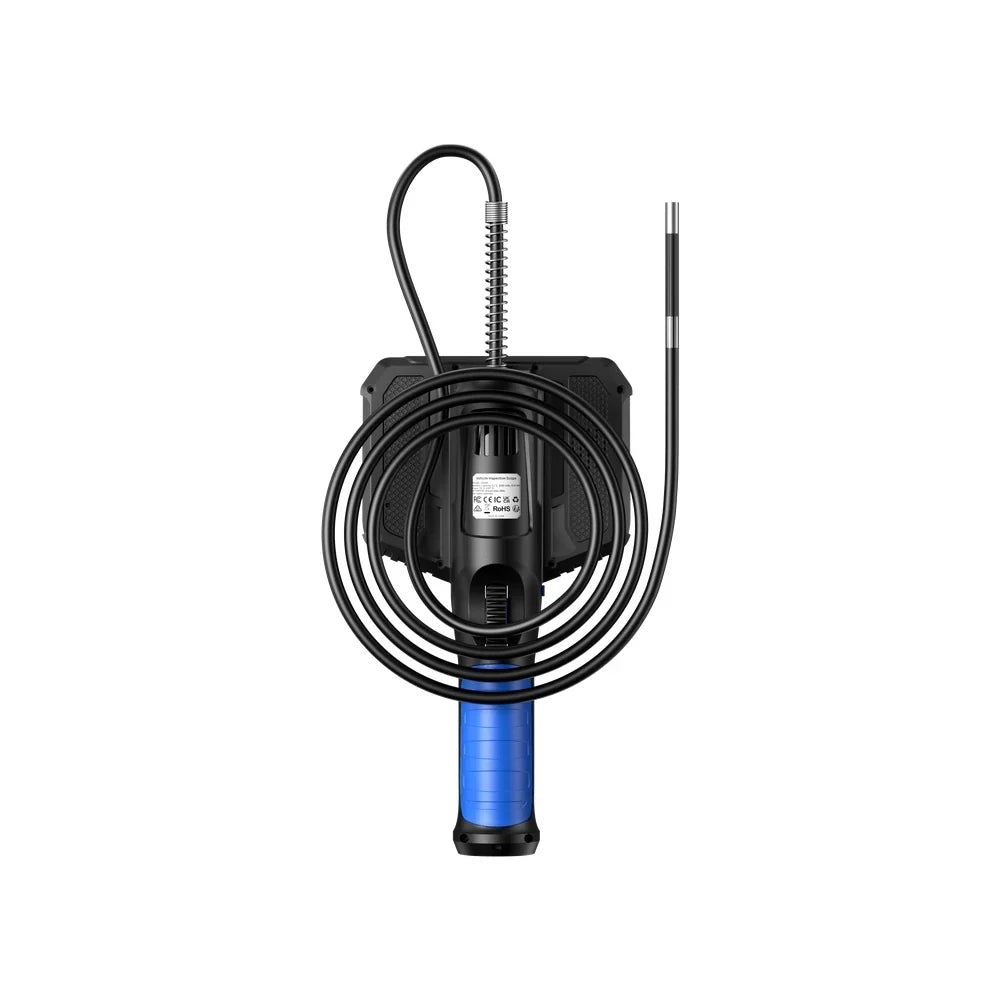

The 5.5mm camera probe is designed for tight engine access, including inspection through spark plug and glow plug openings. A thumbwheel controls 210° two-way articulation, allowing the camera head to be positioned around bends and obstacles.

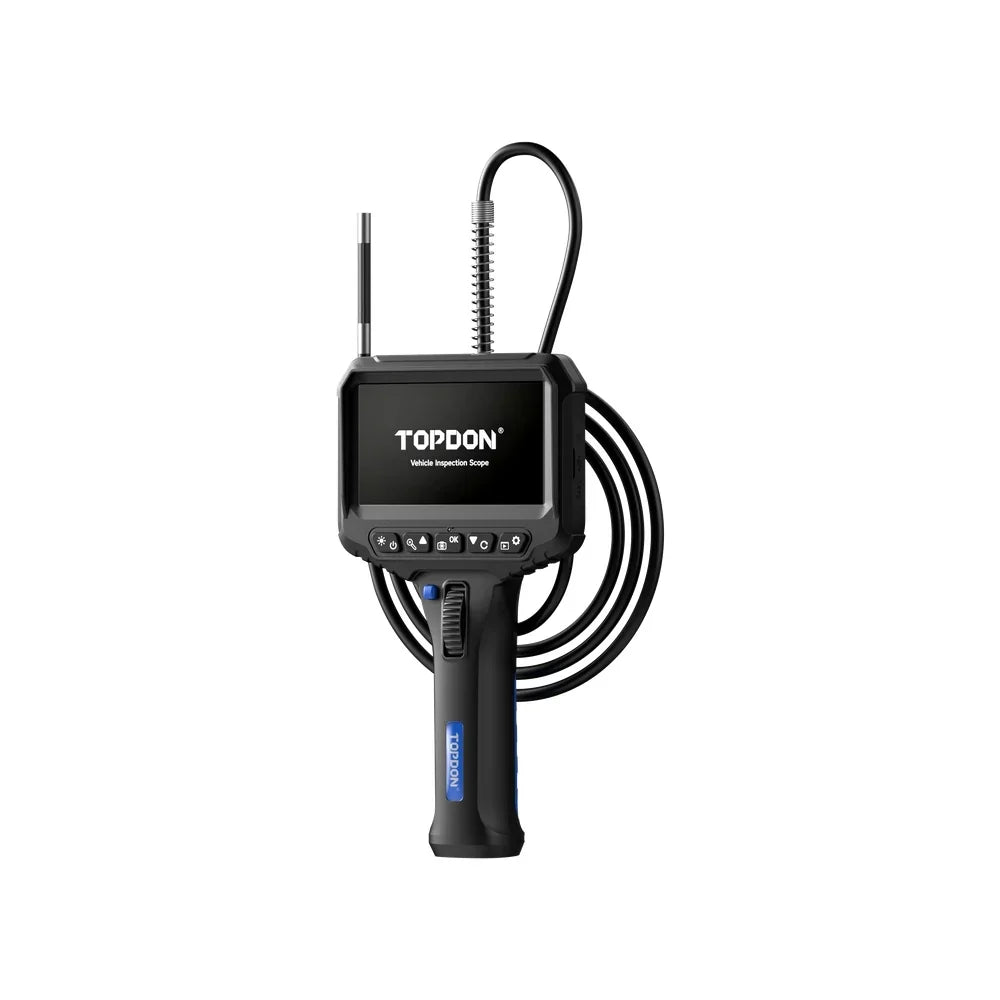

1MP HD Camera & 4.3-Inch IPS Display
The 1MP camera provides detailed inspection images, while the integrated 4.3-inch IPS display gives immediate real-time viewing without requiring a smartphone, app or Wi-Fi connection.

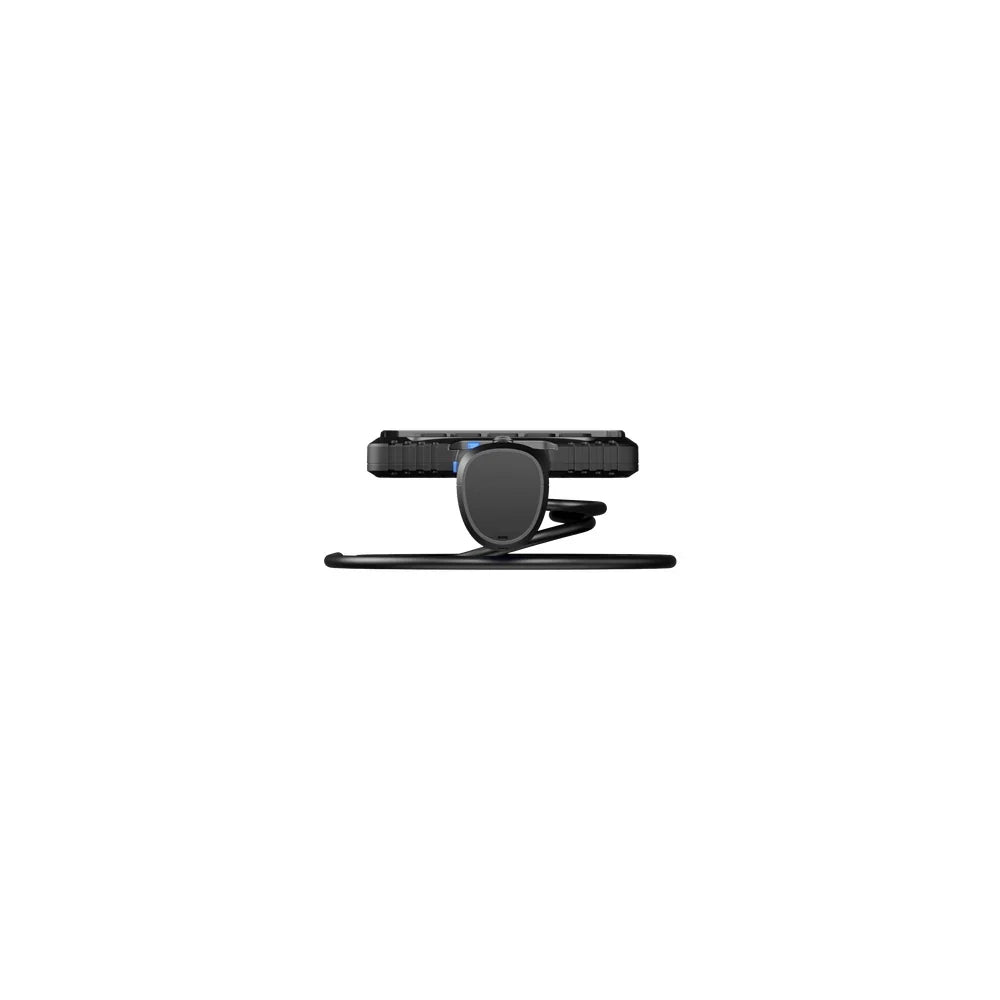

Adjustable LED Illumination
Eight white LEDs illuminate dark inspection areas and help reveal carbon buildup, scoring, corrosion, leaks and other hidden faults.
Photo & Video Recording
Capture JPG photos and AVI video directly to a microSD card. A 32GB microSD card is included and the VIS002 supports cards up to 128GB.
Key Features
- 5.5mm ultra-slim camera probe
- 1MP camera resolution
- 210° two-way articulation
- 4.3-inch IPS colour display
- 90° field of view
- 15–100mm depth of field
- 1 metre semi-rigid probe reach
- 8 white LEDs
- IP67-rated probe head and cable
- Photo and video recording
- 32GB microSD card included
- Supports microSD cards up to 128GB
- 2200mAh rechargeable battery
- Hook and magnet retrieval accessories included
VIS002 vs VIS002 UV Comparison
| Feature | VIS002 | VIS002 UV |
|---|---|---|
| Display | 4.3-inch IPS | 4.3-inch IPS |
| Camera Diameter | 5.5mm | 8.5mm |
| Camera Resolution | 1MP | 0.3MP |
| Articulation | 210° two-way | 210° two-way |
| Field of View | 90° | 62° |
| Depth of Field | 15–100mm | 40–60mm |
| Lighting | 8 white LEDs | 3 white LEDs + 3 UV LEDs |
| UV Light | No | 365nm UV |
| Probe Reach | 1 metre | 1 metre |
| IP Rating | IP67 probe head & cable | IP67 probe head & cable |
| Storage | 32GB included, up to 128GB | 32GB included, up to 128GB |
| Battery | 2200mAh | 2200mAh |
| Net Weight | 380g | 522g |
| Best Suited To | Tight engine access and detailed general inspection | Inspection plus UV dye leak detection and UV marking checks |
Which model should you choose? The VIS002 has the slimmer 5.5mm probe, higher 1MP camera resolution, wider 90° field of view and broader 15–100mm depth of field, making it particularly well suited to detailed automotive inspections in tight spaces. The VIS002 UV adds 365nm UV illumination for applications such as UV dye leak detection and checking UV security markings.
Specifications
- Display: 4.3-inch IPS
- Camera Diameter: 5.5mm
- Camera Resolution: 1MP
- Image Format: JPG
- Video Format: AVI
- Articulation: 210° two-way
- Field of View: 90°
- Depth of Field: 15–100mm
- LED Lights: 8 white LEDs
- Probe Reach: 1 metre
- IP Rating: IP67 probe head and probe cable
- Battery: 3.7V 2200mAh / 8.14Wh
- Storage: 32GB microSD included; supports up to 128GB
- Operating Temperature: -10°C to 50°C
- Dimensions: 225 x 123 x 53mm
- Net Weight: 380g
What's Included
- TOPDON VIS002 Inspection Camera
- USB-C to USB-A cable
- Hook attachment
- Magnet attachment
- 32GB microSD card
- Cleaning cloth
- Carrying case
- User manual
